A 360° column jib crane rotates fully around its own column and offers maximum freedom of movement. A 270° version is installed near a wall or obstacle, where full rotation is not possible. The rotation range is determined by the location and the available space around the column.
STANDAERT ROLBRUGGEN
What exactly is a 270° to 360° column jib crane?

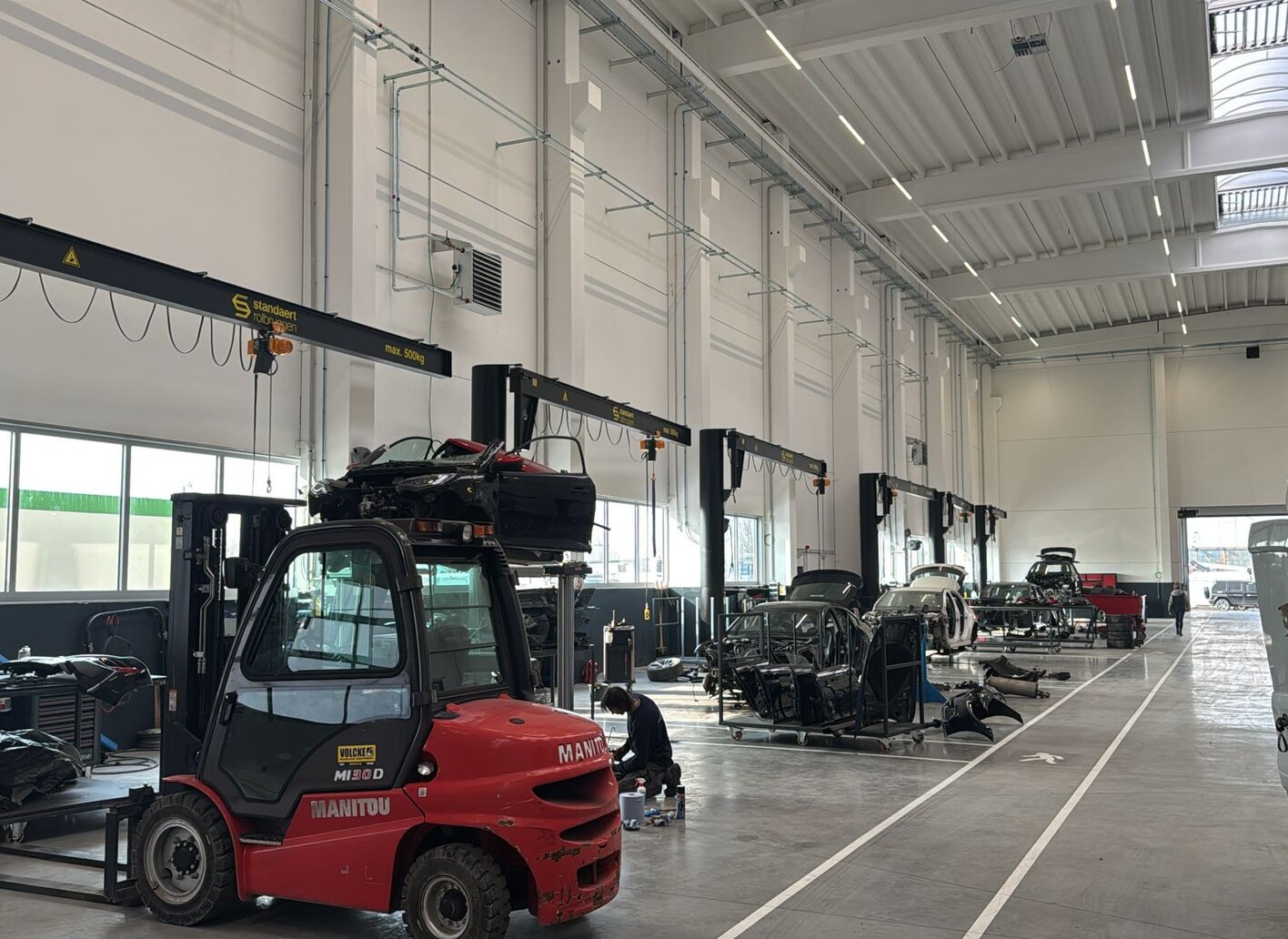

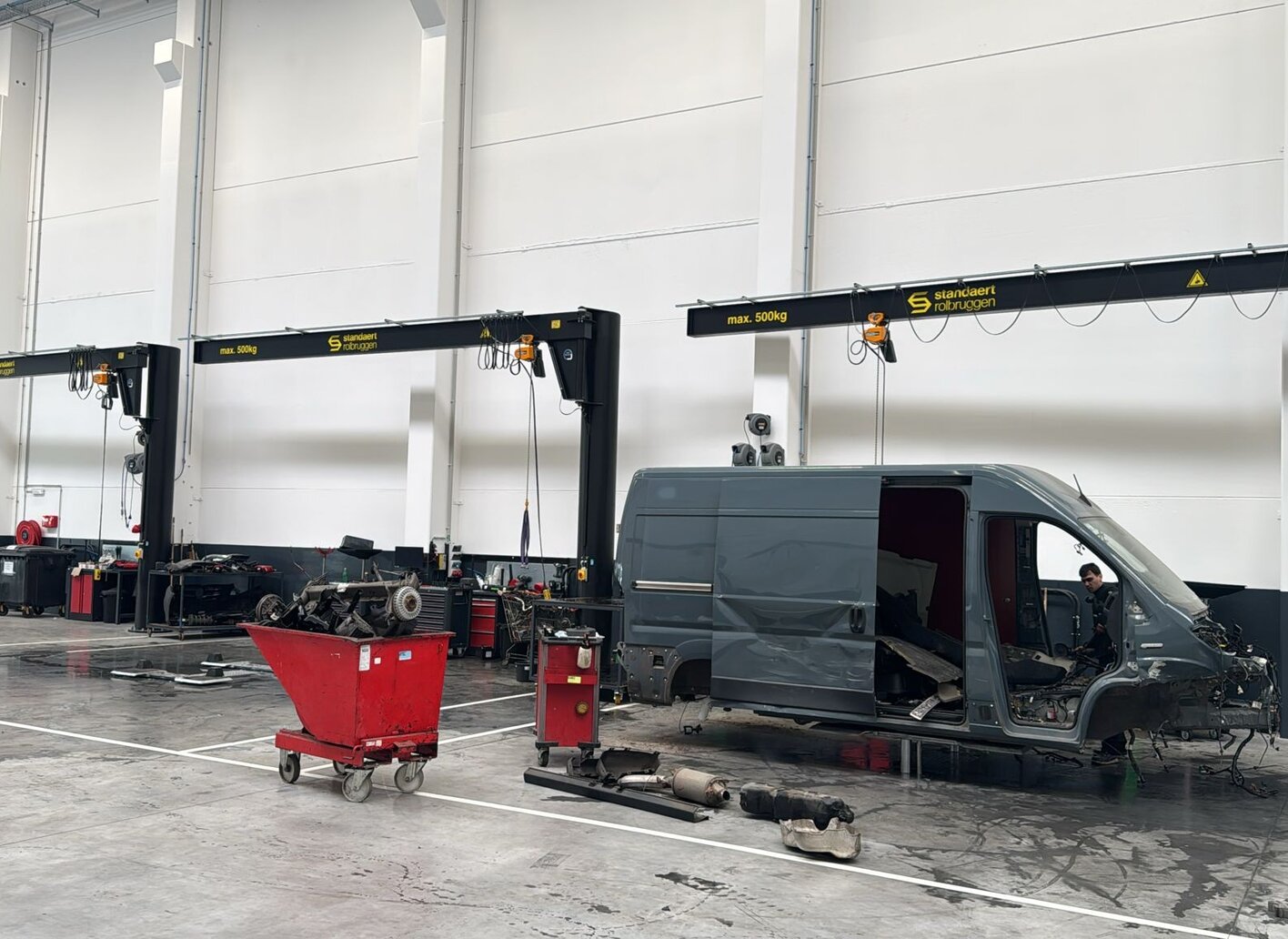

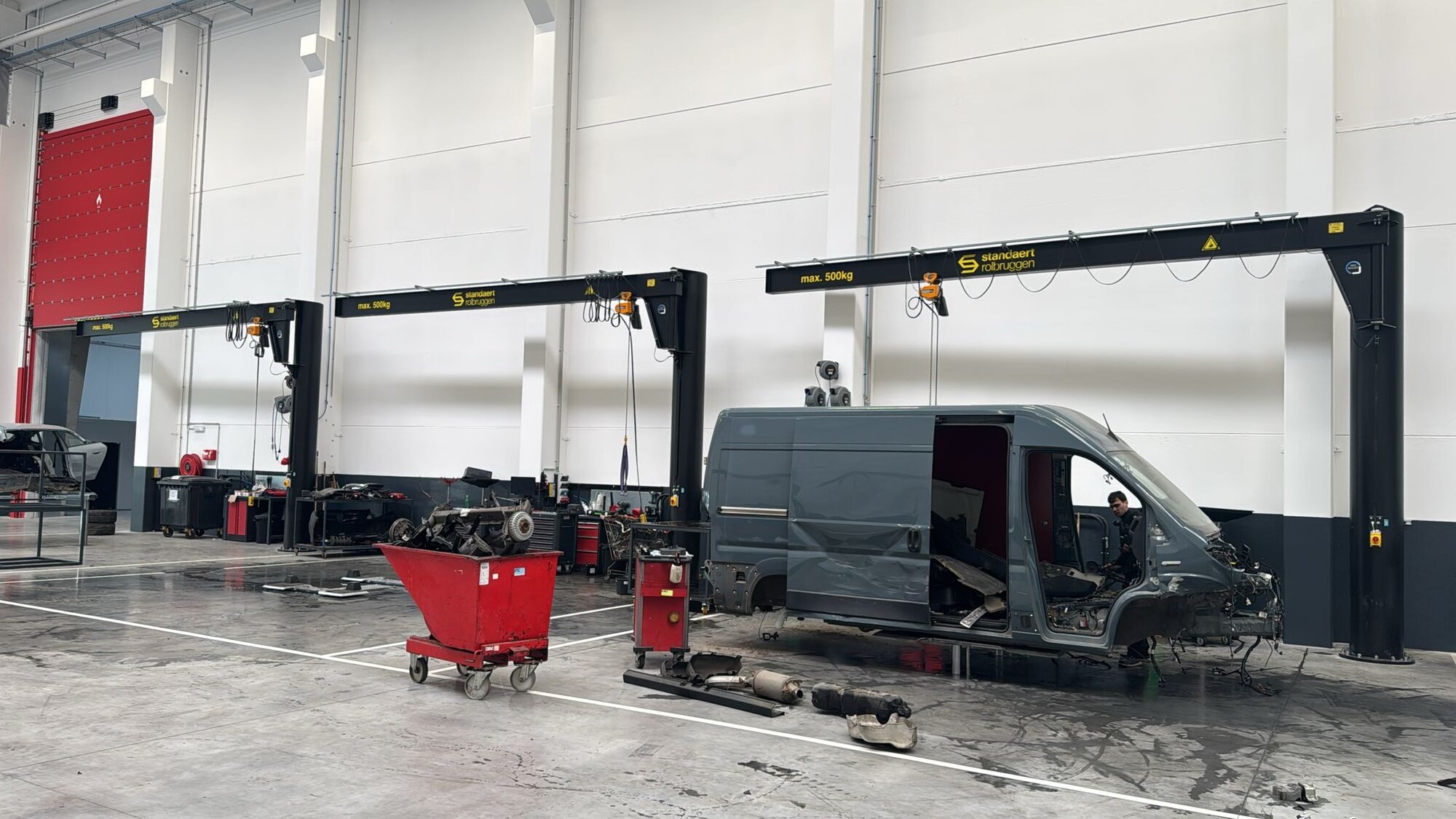

A column jib crane is a freestanding lifting installation that is mounted on the floor and operates completely independently of the building structure. The crane consists of a vertical column with a rotating arm, on which a hoist and trolley are mounted.
Depending on the configuration, the crane can have a rotation range of up to 270° or even 360°, allowing a wide working area around the column. This makes column jib cranes particularly suitable for workstations, production environments and loading and unloading zones where flexibility and local lifting capacity are required.
TECHNICAL INFORMATION
Specifications
Draagvermogen
- From 50 kg to 10 tonnes, depending on the configuration and arm length.
Outreach (arm length)
- Up to 10 metres, depending on lifting capacity and application.
Rotation range
- Up to 270° when installed against a wall or obstacle
- Up to 360° for maximum freedom of movement around the column
Configuration
- Freestanding column jib crane, anchored to the existing concrete floor slab or an additional concrete foundation
- Single girder configuration with electric or manual trolley
- Suitable for individual workstations or larger zones
- Possibility of multiple cranes in one space
Drive & control
- Manual or electric rotation movement
- Electric trolley and hoist for efficient load handling
- Control via pendant control or radio control
Safety & standards
- CE marked in accordance with the European Machinery Directive
- Commissioning carried out by a recognised inspection body via Standaert Service
Maintenance & service
- Own intervention team
- Maintenance contracts tailored to your needs
- Spare parts quickly available from our own stock
Typical applications
- Workstations in production and assembly
- Operation of machines or workbenches
- Loading and unloading zones in warehouses
- Support for larger crane systems
- Flexible lifting solutions in limited or busy spaces
Lift your production to a higher level.
Start your crane project now!
FAQ
Frequently asked questions
The column is anchored to a concrete floor slab or a specific concrete foundation, depending on the lifting capacity and the arm length. The installation is completely independent of the building structure, making it suitable for use in halls without a suitable roof structure for suspension cranes.
Column jib cranes are particularly suitable for individual workstations in production and assembly, operation of machines and workbenches, and loading and unloading zones in warehouses. They are available with lifting capacities from 50 kg to 10 tonnes and outreaches up to 10 metres, with manual or electric operation.
